Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching
amplifier technology with an integrated, full-featured digital signal processor.
Equipped with our second-generation NexD2™ technology, the MV1000/5i is capable of powering a complete marine audio system.
It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 600W @ 2 ohms.
Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels
and 600W @ 2 ohms on the subwoofer channel.
The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design
utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency.
The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology.

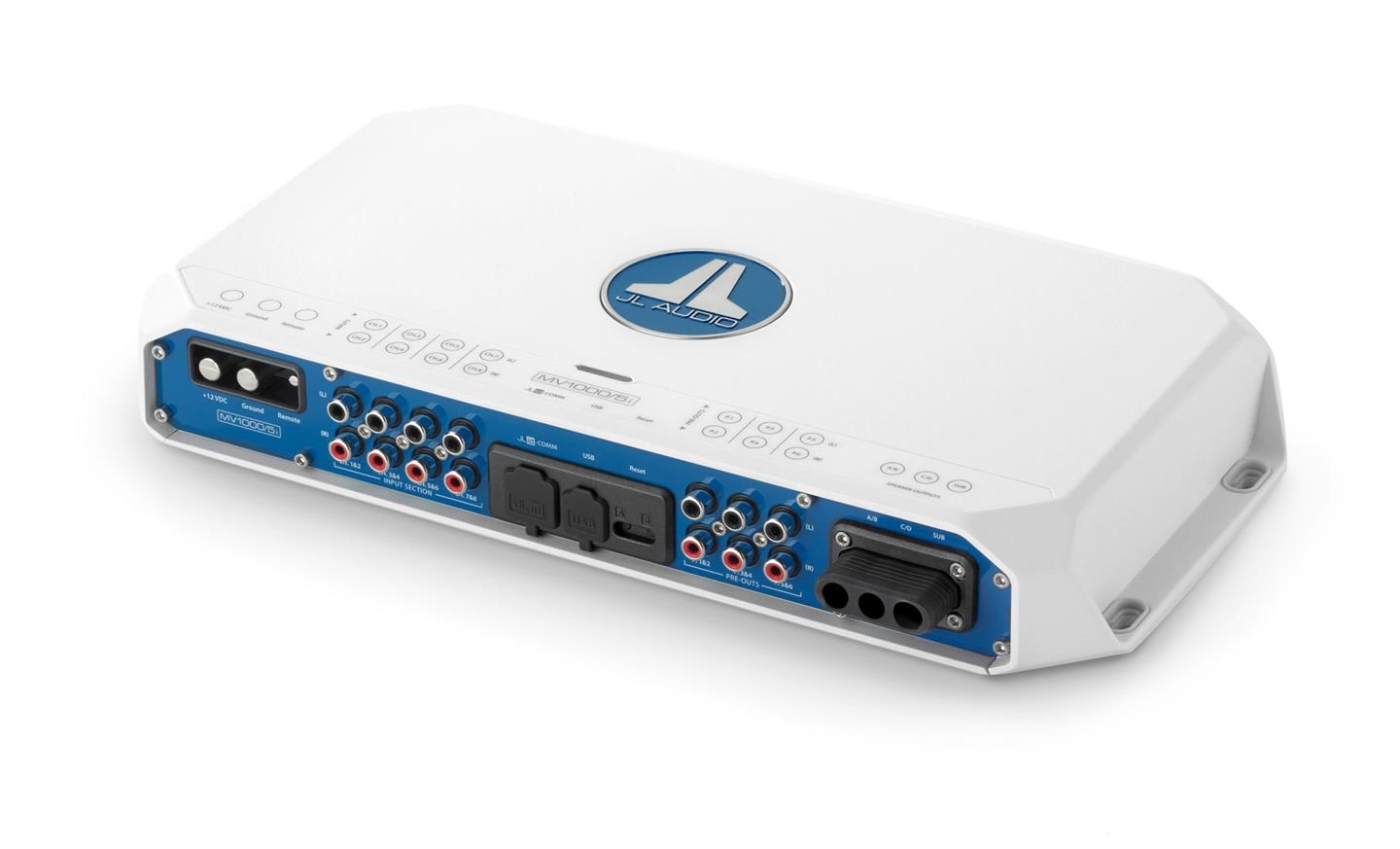

The amplifier chassis is a ultra-compact, cast alloy design with marine-grade powder coat finish and corrosion-resistant hardware.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible
external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

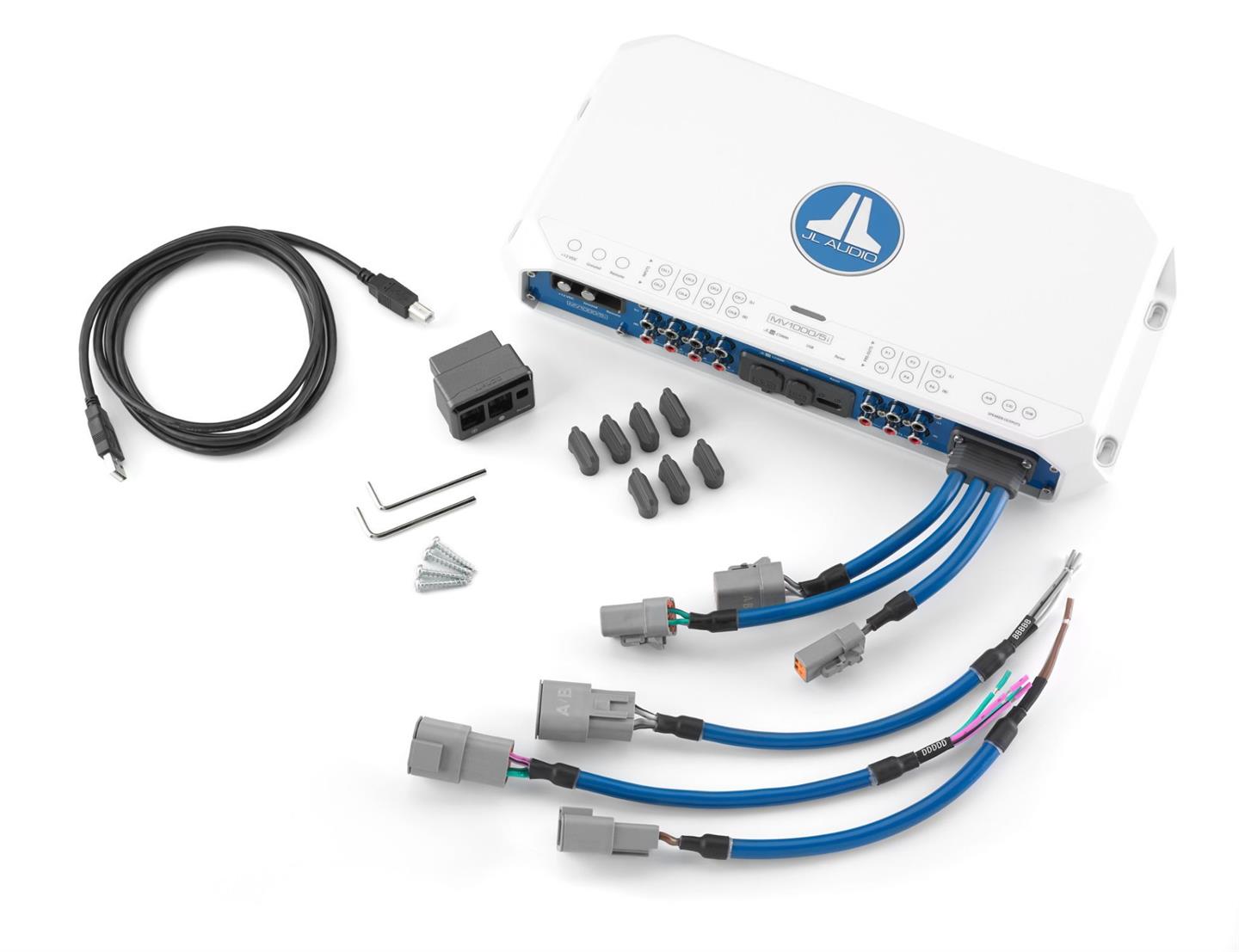

Amplifier includes: Power Connector (for 4 AWG wire), Speaker Output Harnesses (2), Subwoofer Output Harness, 6 ft A/B USB Cable.
| Frequency Response (Main Channels) | 12 Hz - 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) | 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) | 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) | 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 2 O | >50 / 50 Hz |
| Damping Factor @ 4 O | >150 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 O per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 O per Ch. |
| Input Voltage Range @ RCA Inputs | 250 mV - 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
